Start data capture

Configure your machine to automatically record sensor readings, camera images, and other component data, then sync it to the cloud. For the other ways to control what your machine captures and when it syncs, see the Capture and sync overview.

1. Open your machine in the Viam app

Go to app.viam.com and navigate to your machine. Confirm it shows as Live in the upper left.

2. Enable data capture on a component

1. Find your component (for example, my-camera) in the machine configuration.
2. Click the Data Capture button.
3. If you see a “Data management service missing” banner, click Create data management service, click Save, navigate back to your component, and click the Data Capture button again.
4. Select the method to capture:
   • For a camera, select GetImages. This captures a frame from the camera each time it fires.
   • For a sensor, select Readings. This records the sensor’s current values.
5. Set the capture frequency. This is specified in hertz (captures per second):
   • 0.5 = one capture every 2 seconds
   • 0.2 = one capture every 5 seconds
   • 1 = one capture per second
   • Start low. For cameras, 0.5 Hz is a reasonable starting point. You can always increase it later.
6. Click Save in the upper right.

After saving, viam-server begins capturing immediately. You do not need to restart anything.

3. Capture from additional components (optional)

Repeat step 2 for any other components you want to capture from. Each component’s data capture is independent – you can have a camera capturing images every 2 seconds and a sensor capturing readings every 10 seconds at the same time.

To capture from components on another part of a multi-part machine, see Multi-part capture.

4. Sync data from another directory (optional)

You can also sync files from directories outside of the default capture path. This is useful for uploading a batch of existing data or syncing files that another process writes to a folder on your machine.

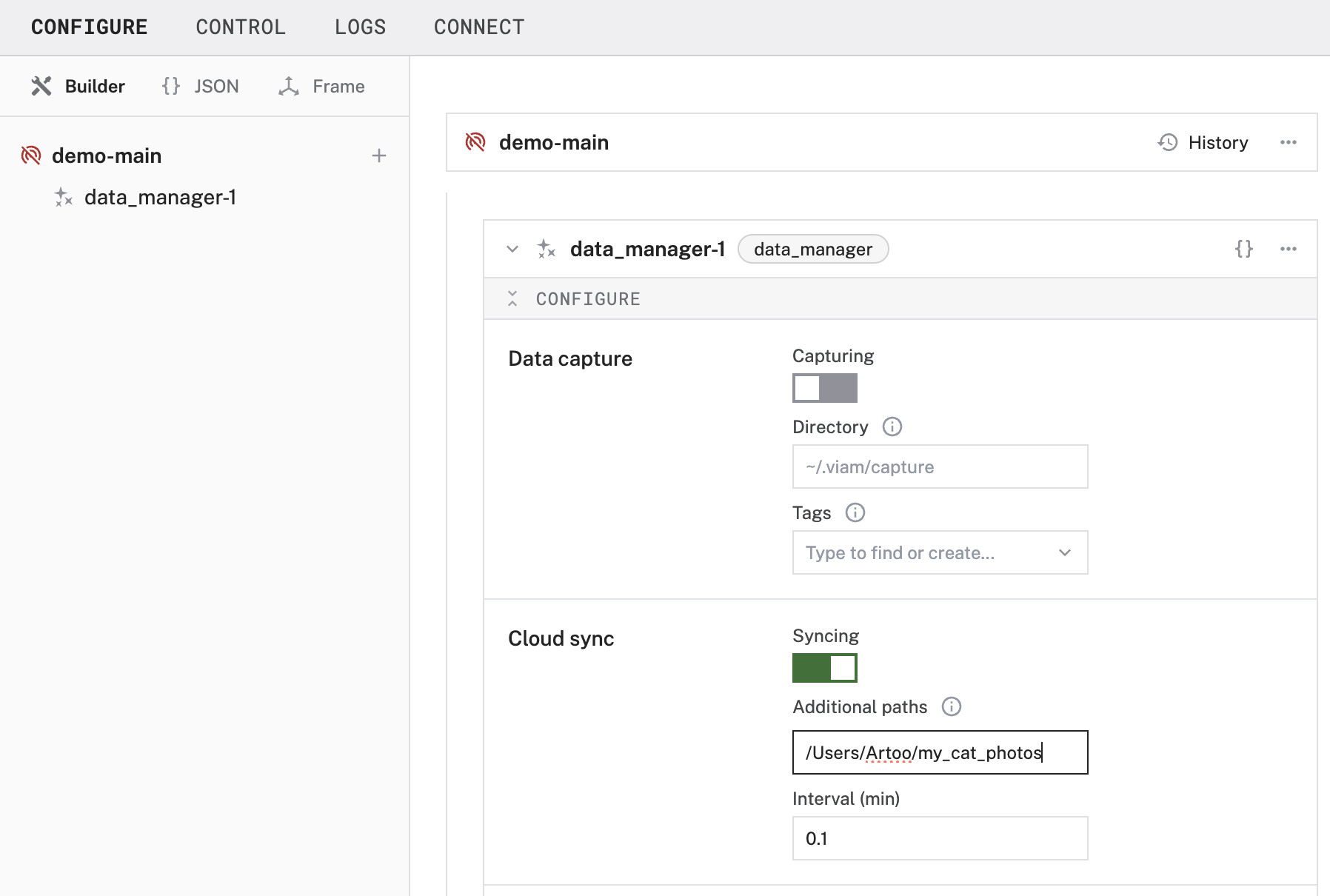

In the data management service configuration, add the directory path to Additional paths (or "additional_sync_paths" in JSON mode).

5. Verify data is syncing

Wait 30 seconds to a minute for data to accumulate and sync, then:

1. In the Viam app, click the DATA tab in the top navigation. The tab opens on the Images view by default.
2. For camera captures, you should see image thumbnails appearing. For sensor data, click the Sensors tab to see the latest readings from each machine and resource. To see historical rows of tabular data, click the small search icon next to a resource on the Sensors tab to open the query editor.
3. Use the filters on the left to narrow by:
   • Machine – select your specific machine
   • Component – select the component you configured
   • Time range – pick a recent window

If you see data flowing in, capture and sync are working correctly.

Reduce capture frequency

The amount of data a component produces scales directly with its capture frequency: dropping a camera from 1 Hz to 0.1 Hz cuts its data volume by ten. If you need periodic snapshots rather than continuous monitoring, lower the frequency:

1. On your machine’s CONFIGURE tab, find the component you capture from.
2. In its Data capture section, change the frequency of the capture method.
3. Click Save.

The change takes effect immediately, without a restart.

As a rough guide, a camera whose images average about 30 KB produces:

Larger images scale these numbers up proportionally. Start with the lowest frequency that meets your needs; you can increase it later once you understand your data volume and bandwidth budget.

A lower frequency doesn’t help when you need to capture specific events, such as only the frames with a person in them. For that, use a filtered camera or capture on demand.

Manage local storage

Captured data is written to the machine’s capture directory, then deleted after it syncs. If sync is disabled, held back by conditional sync, or the machine is offline, files accumulate on disk. When the disk is nearly full, the data management service deletes captured files automatically to keep the machine running, so unsynced data can be lost.

On machines with little storage, such as single-board computers:

• Use the lowest capture frequency that meets your needs. Every reduction in frequency directly reduces storage pressure.

• Keep sync enabled. Without sync, the capture directory grows until automatic deletion starts.

• Capture only what you need. A filtered camera or capture on demand reduces what gets written to disk, not just what gets synced.

• Choose the sync interval deliberately. A short interval, such as every 30 seconds, keeps the local backlog small. A longer interval reduces network requests but needs more local storage.

• Monitor disk usage. Check the size of the capture directory, and set up an alert or health check if it grows past a threshold:

  du -sh "$HOME/.viam/capture"


  To watch it over time, refreshing every minute:

  watch -n 60 du -sh "$HOME/.viam/capture"


  Use /root/.viam/capture when viam-server runs as root through viam-agent. See Capture directories for every platform.

Supported resources

Any built-in or modular component that implements a capturable method can be configured for data capture. The following table lists the most commonly captured component types and their methods:

Every component also supports GetWorldPose (requires a configured frame system) and DoCommand. Modular components that return readings through any of these methods are automatically capturable.

Troubleshooting

What’s next

• Query data: write queries, set up data pipelines, and export data
• Add computer vision: run ML models on your camera feed and capture detection results
• Capture on demand: start and stop capture on several components at once with a capture control sensor, and record sequences
• Create a dataset: organize captured images into training datasets
• Reference: JSON-level config, retention policies, and sync optimization
